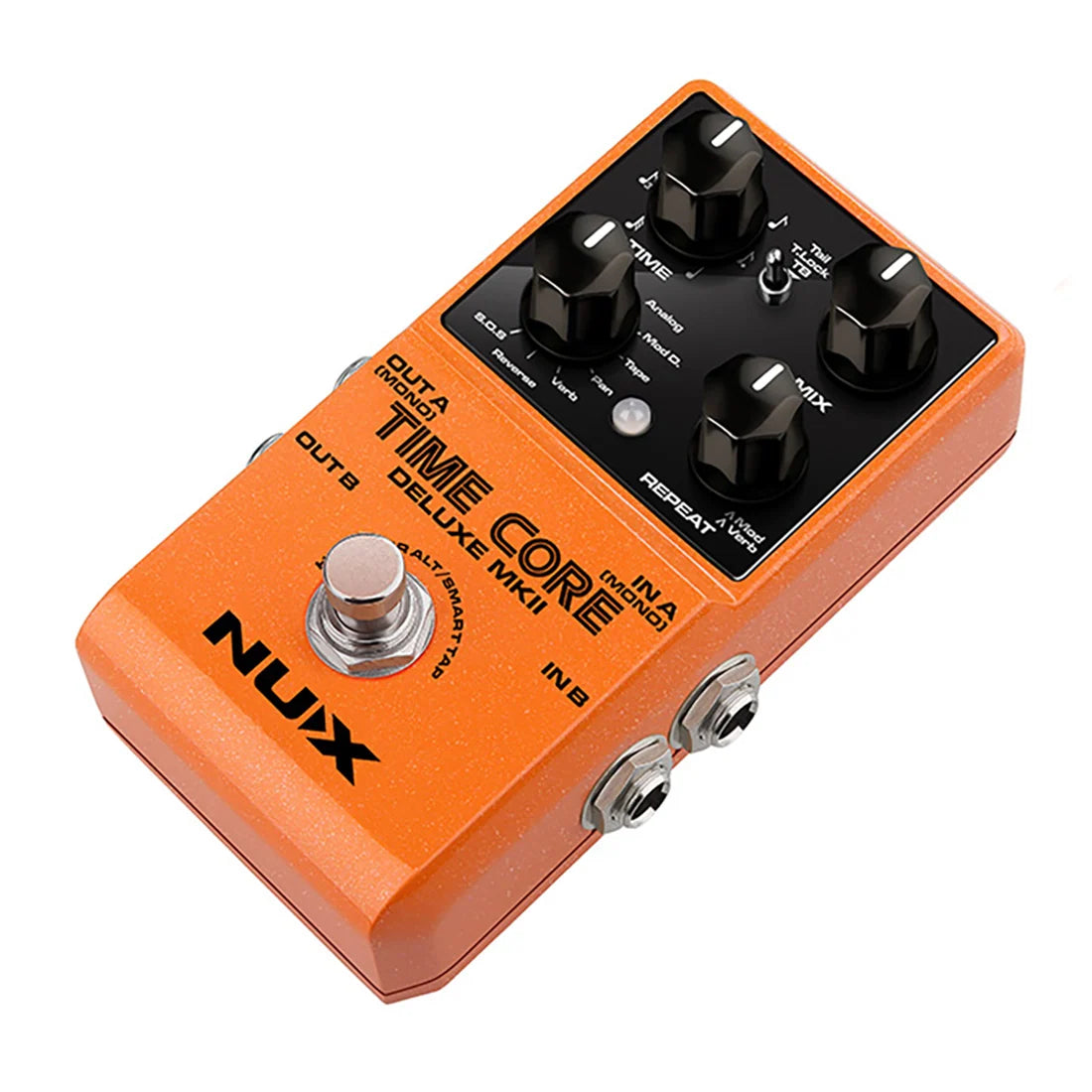

The NUX TIME CORE DELUXE MKII is a delay pedal with 7 different types and a phrase looper; including ΦPhi Digital Delay, Analog Delay, Modulation Delay, Tape Echo, Pan Delay, Verb Delay, Reverse Delay and Sound On Sound. You can switch the delay type by using the Type rotary switch.

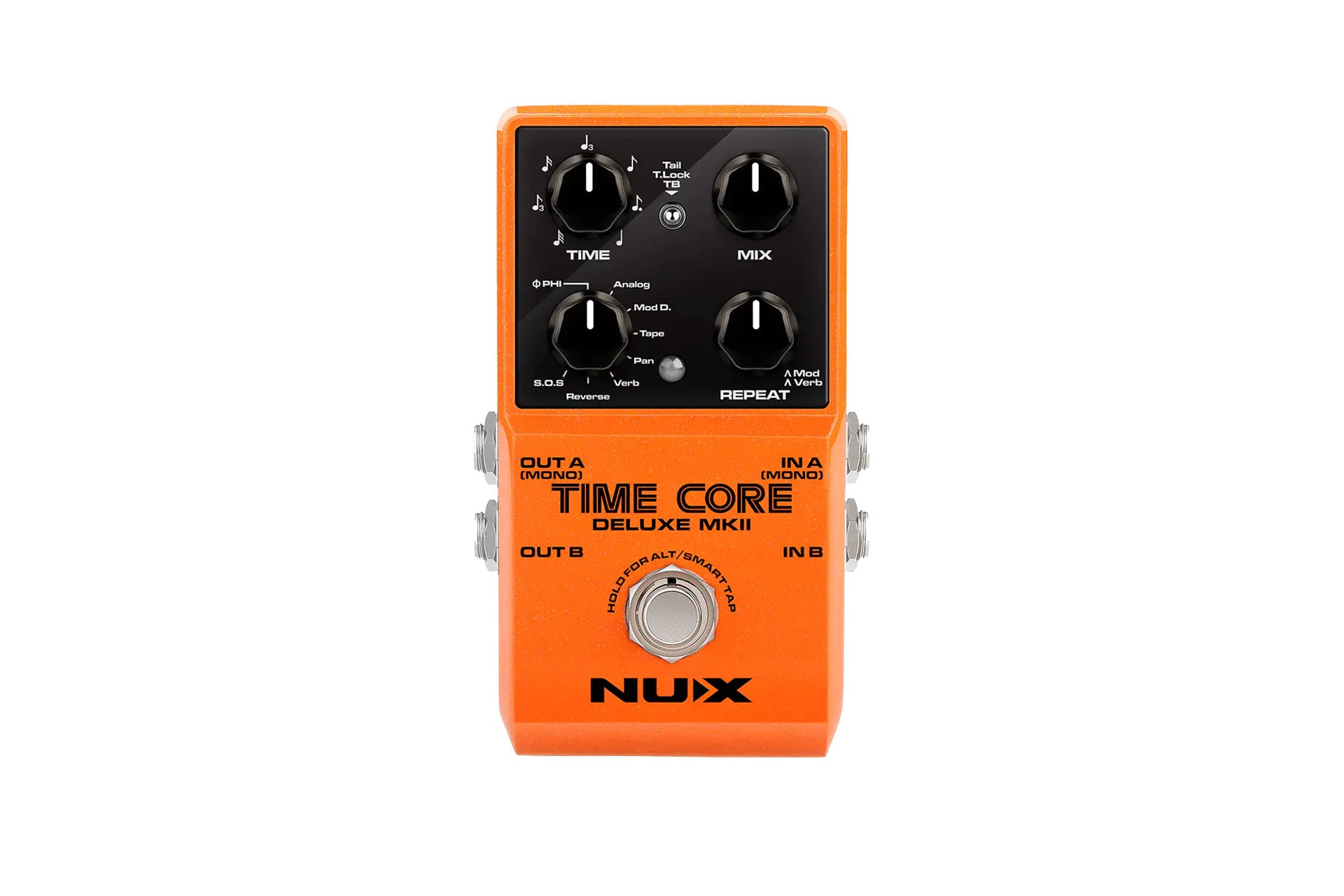

Time knob
Adjusts the delay time. Set the knob parameter to your desired sub-division, then use the Smart Tap Tenpo to get sub-division delay time related to tap tempo.
Time range related to the models:
ΦPhi Digital Delay: 80ms~1000ms
Analog Delay: 40ms~ 403ms
Modulation Delay: 20ms ~ 1500ms
Tape Echo: 55ms ~ 552ms
Pan Delay: 80ms ~ 1000ms
Verb Delay: 80ms ~ 1000ms
Reverse Delay: 320ms ~ 1240ms
*Note: The maximum delay time is 1580ms by Smart Tap Tempo.
Mix knob
Adjusts the wet/dry mixing level of delay，from 0% up to 100% when you turn the knob clockwise.
Delay Type knob
Selects the type of delay.
Repeat knob
Adjusts the repeat numbers of delay. In Mod D. or Verb, hold the footswitch to enter to Alt mode, (the LED indicator will flash ORANGE), Now the Repeat knob will adjust the Mod or Verb parameter. Short press the footswitch to quit Alt mode.
Toggle switch
This switch sets the bypass mode and Tone Lock. Selecting Tail sets the Buffer-Bypass to keep the delay with spillover while disengaged. TB means True-Bypass, there is no spillover while you disengage the effect. T.Lock means Tone Lock, an innovative function to store and lock your current parameter setting to prevent accidents on stage. After you set the parameters, just toggle the switch to T.Lock position, then the LED indicator will flash GREEN 2 times to store and lock the parameters. Then you can engage or disengage the effect by the footswitch and no worries.
Footswitch & FS Indicator
Press once to engage/disengage the effect. Press twice, it will become Smart Tap Tempo. The delay time is related to tap tempo and current sub-division parameter. (The FS indicator will flash as current BPM.)
Note: The maximum delay time of tap tempo is 1580ms.
When the effect is engaged, the FS indicator will show “Red”. While the effect is disengaged, the FS indicator will turn off.

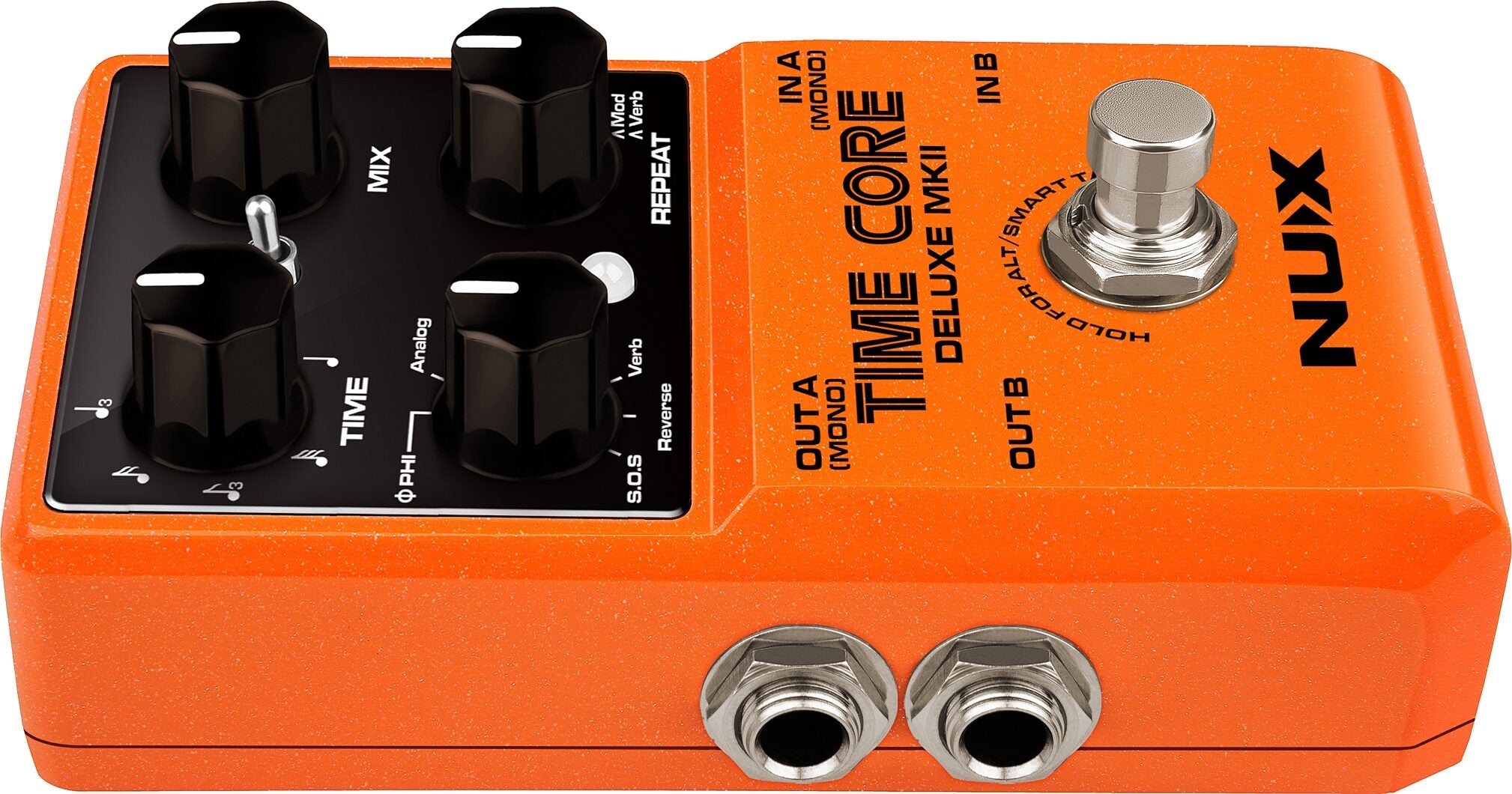

I/O Jacks
DC jack
Use ONLY: 9V Negative Tip power with more than 150mA. (The power consumption is less than 125mA.)
USB-C port
The USB-C port is for firmware updates. Connect USB cable to a PC and hold the footswitch to boot-up the device and to enter the DFU (Device Firmware Update) mode. Once connected you can perform firmware updates using DFU updater software.
Download the related firmware and firmware update guide from product page.
In jacks
The audio inputs on the right side of this pedal are standard 1/4″ jacks (mono/TS). Connect your guitar to the In (mono) audio input on the right side of your pedal using a regular 1/4″ instrument cable.1
The pedal also accepts stereo signals using a pair of 1/4″ TS cables.
Out jacks
The audio outputs on the left side of this pedal are standard 1/4″ jacks (mono/TS). Connect the audio output of your pedal to the next device in the signal chain, either with a single cable or with a pair of 1/4″ cables if both inputs are used.
Connections
If the amp’s FX loop is parallel, you will need to engage Kill Dry.
Kill Dry: Without USB connection, hold the footswitch to boot-up the pedal, if the LED indicator flash GREEN 3 times, the KILL DRY is engaged. If the LED indicator flashes RED 3 times, the KILL DRY is disengaged. (Normal)
